High Frequency Thyristor -- Disc Type

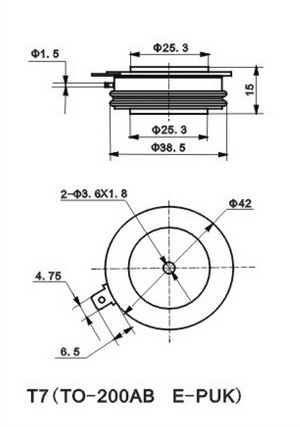

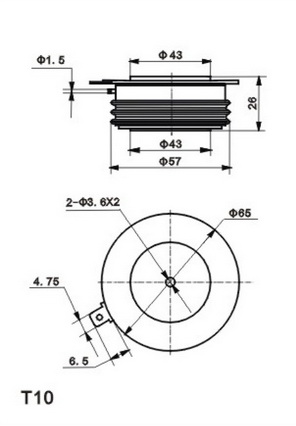

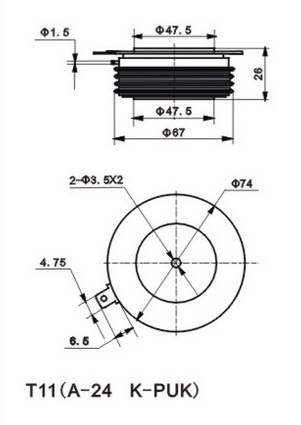

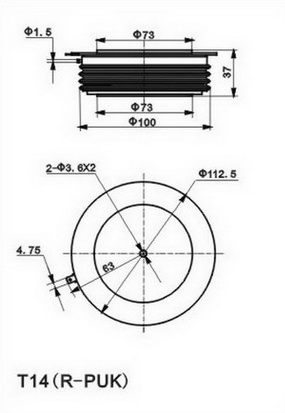

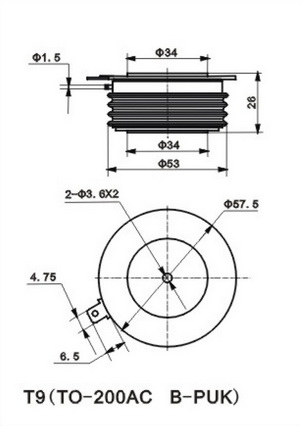

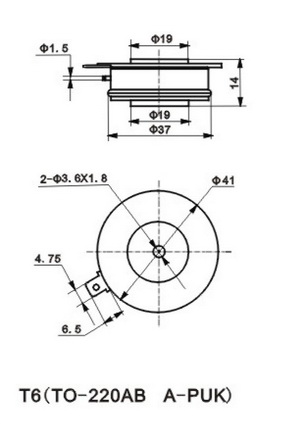

Model	I_T(AV) @T_C=70℃ A	V_DRM V_RRM V	V_TM		I_DRM I_RRM mA	I_GT mA	V_GT V	dv/dt V/μs	di/dt A/μs	t_q @115℃ μs	t_gt @115℃ μs	R_thjc ℃/W	Outline
Model	I_T(AV) @T_C=70℃ A	V_DRM V_RRM V	V	@I_TM A	I_DRM I_RRM mA	I_GT mA	V_GT V	dv/dt V/μs	di/dt A/μs	t_q @115℃ μs	t_gt @115℃ μs	R_thjc ℃/W	Outline
KA100	100	400～ 1200	≤3.2	300	≤30	≤150	≤3.0	≥50	≥50	≤10	≤3	0.20	T6
KA200	200			600	≤30	≤250	≤3.0	≥200	≥200	≤15	≤3	0.11	T6 T7
KA300	300			900	≤40						≤4	0.08	T7
KA500	500			1500	≤50							0.04	T9
KA800	800			2400	≤80							0.026	T9 T10
KA1000	1000			3000	≤80							0.02	T10 T11
KA1500	1500			3000	≤100							0.015	T11 T12
KA2000	2000		≤2.6	6000	≤100	≤400	≤3.5	≥200	≥200	≤15	≤4	0.015	T13
KA2500	2500		≤2.4	6000	≤100	≤400	≤3.5	≥200	≥200	≤15	≤4	0.011	T14
KG200	200	1400～ 1600	≤3.4	600	≤25	≤200	≤3.0	≥500	≥200	≤20	≤3	0.026	T9
KG500	500			1500	≤45							0.02	T10
KG1000	1000			3000	≤50							0.015	T11
