Key Features

   Hermetic metal-glass and metal-ceramic cases of press pack and stud design

   Guaranteed max. power dissipation in a avalanche breakdown mode

Applications

   Uncontrollable rectifier bridges

   High power drives for industry and transport

   Power supplies for traction

Avalanche Rectifier Diodes -- Stud Type

  See Definition and Symbols

Type	VRRM   V	IRRM   mA	IF(AV)		IFRMS   A	IFSM   @10ms   kA	i2t   A2s103	VFM		VTO   V	rT   mΩ	PRSM   kW	Tjmax   ℃	Rthjc   ℃/W	Outline
			A	@TC ℃				V	@IFM   A

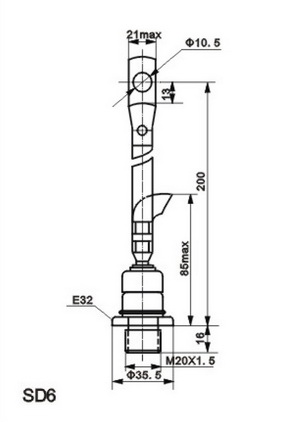

DL161 -200	400- 1800	25	200	115	280	7.5	280	1.40	628	0.92	0.68	16	150	0.130	SD6
DL171 -320	600- 1800	25	320	115	600	10	500	1.40	1000	1.00	0.50	16	150	0.085	SD7
