  • Three Phases AC SSRs


      See Definition and Symbols

    Type

    Features

    Operational

    Current


    A

    Operating

    Voltage


    VAC

    Control

    Voltage


    VDC

    		 Outline

    Series SGT

    (10~40A)

     •  Middle power

     • Triac output

     • Switched mode: zero voltage

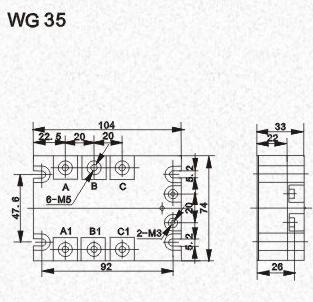

    		3×10A, 3×15A, 3×25A, 3×40A 440 4~16, 3~32 90~250VAC WG35



    Series SGTH

    (25~150A)



     • Middle power

     • SCR output

     • Both 'zero voltage' &

     phase controllable 'random

     switching' versions

    3×25A, 3×40A, 3×60A, 3×80A, 3×100A, 3×120A, 3×150A

    		 480, 530 4~16, 3~32 90~250VAC WG35

    Series SGTH

    (200~500A)

     • High power

     • SCR output

     • Both 'zero voltage' &

     phase controllable 'random

     switching' versions

    		 3×200A, 3×300A, 3×400A, 3×500A, 480, 530

    3~32, 90~250VAC

    		 WM21
