Molybdenum Disc with Rhodium Plated
Print
Prev Model
Product Quick Details
Order Terms
Support Services
SHARE
  • Features
  • Specifications
  • Circuits
  • Name Instruction
  • Outlines
  • Gallery
  • Download

  • Material



    Molybdenum 99.95% produced from rolled Mo-sheet.

    The disc shall be plated with 0.3-0.4μm rhodium.

    No cracks from punching or other operations are allowed.

    All edges absolute free from burrs

    The faces must be free from spots, pip marks, scratches etc.

    The coating must not show flaws or flake off when tsting the adhesion with adhesive tape.

  • Molybdenum Disc with Rhodium Plated


    Article No.

    Description

    ΦA ± 0.05

    T +0.1
      0

    ΦB ± 0.1

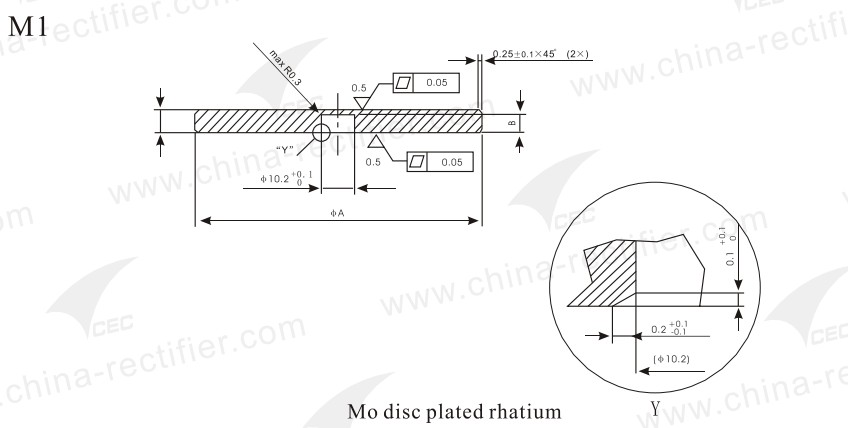

    Fig.
    5SXC96-0052 Mo-disc (A) YST 35F 64.6 2 1.5 M1
    5SXC96-0053 Mo-disc (A) YST 45F78.12.52
    5SXC96-0054 Mo-disc (A) YST 60F 89 3 2.5
    5SXC96-0059 Mo-disc (A) YST 90F 108 3.5 3
  • Molybdenum Disc with Rhodium Plated
    Document Format File Size
    0 0
    Molybdenum Disc with Rhodium Plated Spec Sheet 216 KB
